15CDV6

Special Alloys: 15CDV6

15CDV6

15CDV6 is used in missile canisters. A high yield and high tensile strength combination enables it to sustain high temperatures.

Other applications: Pressure Vessels, Rocket Motor Casings, Suspension Components, Wishbones, Track and Push Rods

Available products: Slabs, Sheets, Plates, Coils, Forged Rings, Forged and Rolled bars in various dimensions

Chemical Composition +

  • ElementsMinMax
  • %C0.120.18
  • %P-0.020
  • %Si-0.20
  • %V0.200.30
  • %Mn0.081.1
  • %S-0.015
  • %Cr0.251.5
  • %Mo0.801.00

Mechanical Properties +

  • ConditionAnnealed
  • UTS (MPa)750 - 1250
  • YS (MPa)550 - 700
  • % Elongation10 (min)
  • Hardness (BHN)Hardness (BHN)

Special Alloys: Super Duplex

Super Duplex

Super Duplex Steel is characterised by very high strength, good weldability and high corrosion resistance even in extreme environmental conditions, making it suitable for marine environments. They have a PREN value of greater than 40.

Applications: Submarine Rocket Launchers, Heat Exchangers, Vessels, Oil and Gas industry equipments and other naval components.

Available products: Slabs, Sheets, Plates, Coils, Forged Rings, Forged and Rolled bars in various dimensions

17-4PH

Special Alloys: 17-4PH

17-4PH

17-4PH is one of the most widely used precipitation hardening grades. It is characterised by high corrosion resistance, hardness, toughness and strength.

Similar grades: 17-7 PH and 15-5 PH.

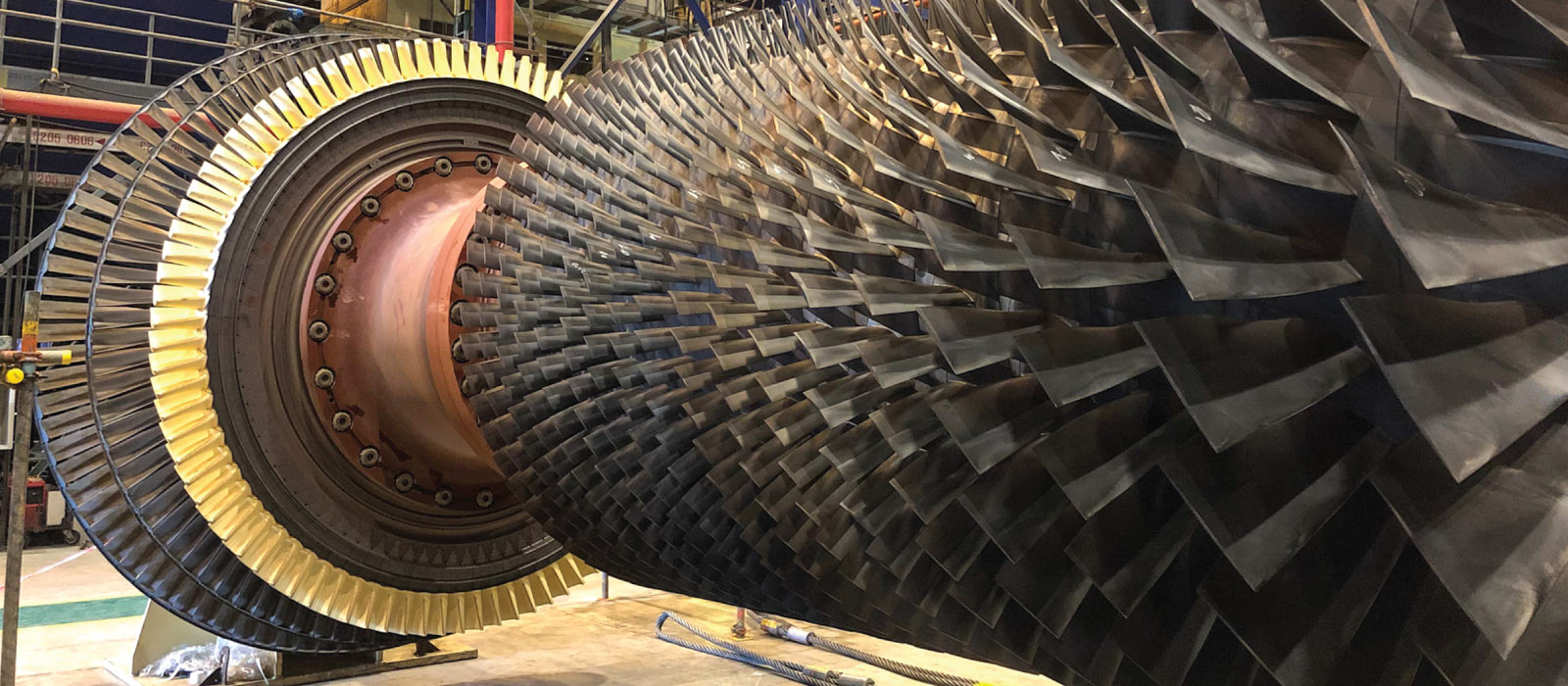

Applications: Nuclear Reactors, Gas Turbines and other similar applications.

30KHGSA

Special Alloys: 30KHGSA

30KHGSA

Highly hardenable steel, high wear resistance and durability, designed for heavy-duty machines construction.

The 30HGSA grade carried more restrictive S-sulfur and P-phosphorus approvals in the chemical composition. This improves the properties and quality of the product.

The 30HGSA steel grade is used for products such as spindles, sprockets, levers, clutch parts, gears, flanges and bushings, heavy duty steel axles, shafts, and steel for compressor blades and airplane tubes.

Chemical Composition +

  • ElementsMinMax
  • %C0.280.34
  • %Mn0.900.10
  • %Si0.801.20
  • %P-0.015
  • %S0.0250.025
  • %Cr0.801.10
  • %Mo-0.15
  • %Ti-0.03
  • %W-0.20
  • %Cu-0.20

Mechanical Properties +

  • ConditionAnnealedQuenched and Tempered
  • UTS (MPa)490 - 7401080
  • % Elongation10 (min)20 (min)
  • Hardness (BHN)156 - 217 MPa49 (min)

Products Available +

  • Product TypeSheets/plates
  • Thickness, mm0.8-50
  • Width, mm1000-1600
  • ShapeRound bar
  • Diameter, mm5-300

Armour Material: JD-1

JD-1

Armour Steel
Armour with minimum
gauranteed hardness of 500 HB

General Characterstics

  • Armour steel optimally designed for enhanced ballistic protection and lighter weight
  • Perfect combination of hardness and toughness for penetration and fragment protection
  • Excellent workability and ease of fabrication
  • Applications include armoured military vehicles, up-armoured vehicles, high security buildings, rotected structures etc.

Chemical Composition +

  • %C0.32
  • %Min1.5
  • %S0.010
  • %P0.015
  • %Si0.5
  • %Ni2.2
  • %Cr1.00
  • %Mo1.0

Armour Material: JD-1M

JD-1M

Armour with minimum
gauranteed hardness of 550 HB

General Characterstics

  • Armour steel optimally designed for ballistic protection
  • Perfect combination of hardness and toughness for penetration and fragment protection
  • Excellent workability and ease of fabrication
  • Applications include armoured military vehicles, up-armoured vehicles, high security buildings, protected structures etc.

Chemical Composition +

  • %C0.4
  • %Mn1.5
  • %S0.010
  • %P0.015
  • %Si0.5
  • %Ni2.5
  • %Cr1.5
  • %Mo1.0

Armour Material: HNS

High Nitrogen Steel (HNS)

High Nitrogen Steel is also used in army bridges and in other structural applications, as it has high strength and good weldability.

The welding efficiency achieved is 80-90%, which is higher than other commercial grades available. Super Duplex Steel has a high strength-to-weight ratio which inhibits good structural integrity.

Other advantages: High corrosion resistance, Low DBTT temperatures enabling it to be used in naval applications.

General Characterstics

  • Armour steel optimally designed for blast protection
  • Perfect combination of strength & toughness as compared to other commercial grades available
  • Corrosion resistant
  • High impact value even at sub-zero temperatures
  • Unique combination of Ballistic and Blast protection properties

Chemical Composition +

  •  Min.Max.
  • %C-0.1
  • %Mn21.024.0
  • %S-0.015
  • %P-0.060
  • %Si-1.0
  • %Cr17.520.0
  • %N0.50.7

Mechanical Properties +

  • Thickness (mm)< 1010 to < 2020 to 50
  • YS (min. MPa)950 - 1250750 - 1050700 - 850
  • UTS (min. MPa)1000 - 1300900 - 1150900 - 1100
  • %EI, min153030
  • Impact Toughness Min J - L, RT-150200

Our
Expertise

Vertically integrated manufacturing facility with Triplex Refining route (Electric Arc Furnace , Argon Oxygen Decarburization and vacuum degassing) followed by continuous casting and other manufacturing activities to achieve high cleanliness steels with a comprehensive dimensional range.

A dedicated world-class research & development and innovation center to support product upgrade, development of new products and fostering a culture of value creation, sharing, and testing of idea.

A global network to facilitate maintenance of supply chains all over the world and access to information on developments in an overseas industry/ market.
