Armour Steel
Armour Plating

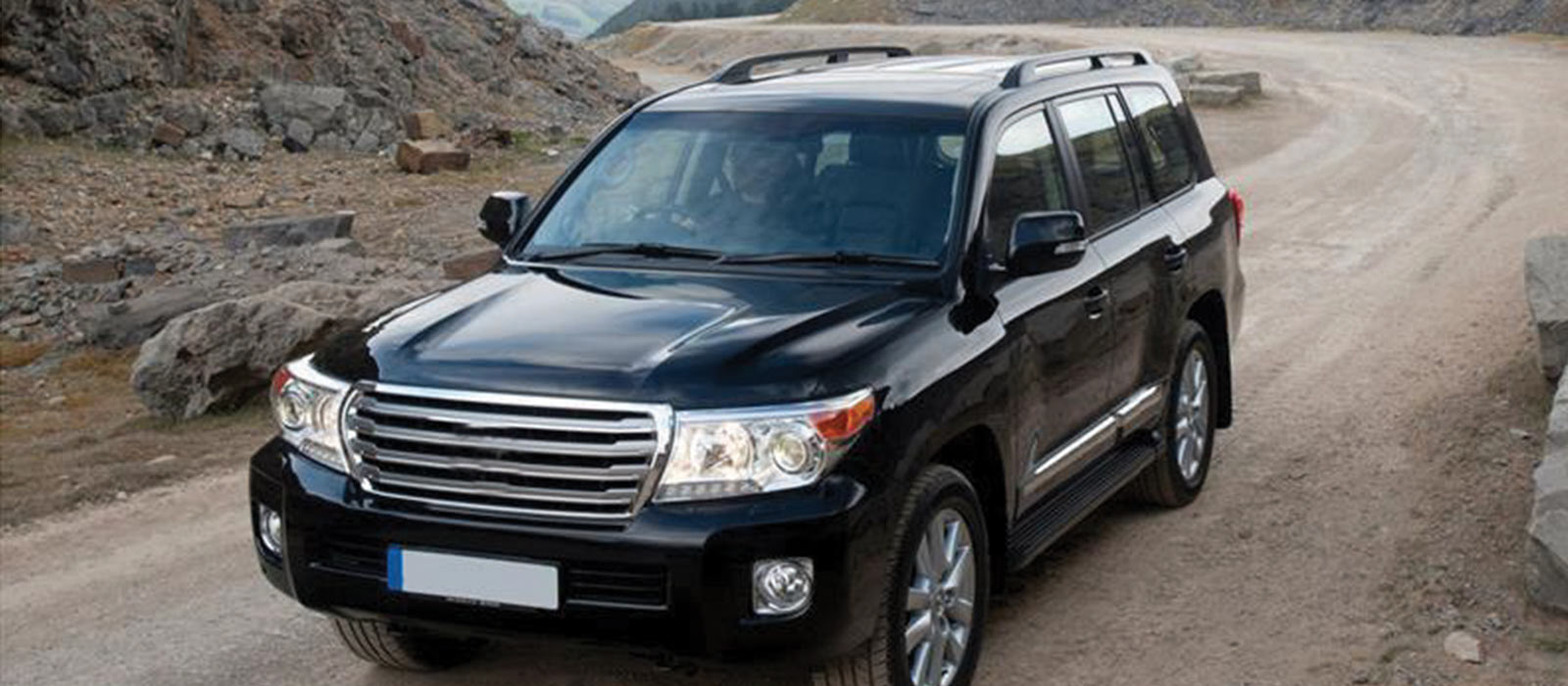

Vehicle Armour Plating

JD-1M

JD-1M

Armour with minimum
gauranteed hardness of 550 HB

General Characterstics

  • Armour steel optimally designed for ballistic protection
  • Perfect combination of hardness and toughness for penetration and fragment protection
  • Excellent workability and ease of fabrication
  • Applications include armoured military vehicles, up-armoured vehicles, high security buildings, protected structures etc.

Chemical Composition +

  • %C0.4
  • %Mn1.5
  • %S0.010
  • %P0.015
  • %Si0.5
  • %Ni2.5
  • %Cr1.5
  • %Mo1.0

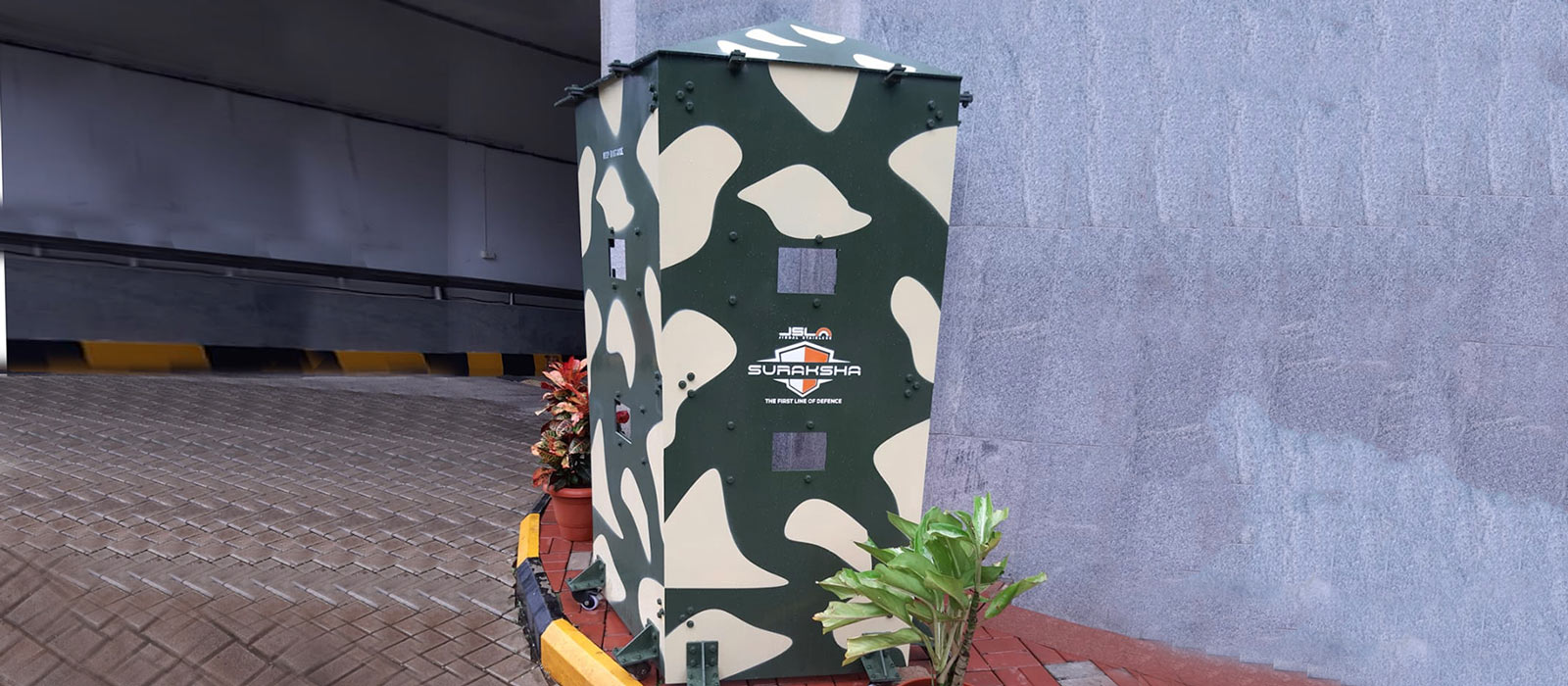

Bullet Proof Morcha

Bullet Proof Morcha

Bullet Proof Morcha

Technical Specifications +

  • Sr.No. Parameter Specification*
  • 1 Protection Protection against ballistic threat levels of NIJ Level III, STANAG Level 2, 7.62 X 54R etc.*
  • 2 Handling Each Morcha plate has two firing port windows of size 175+/- 5mm X 125+/- 5mm with adequate overlapping of B.P. Sliding shutter from inner side at a height of 1350 and 750mm respectively from the bottom of Morcha plate. (Subject to size of BP Morcha height & end user requirement).
  • 3 Firing Port Each Morcha plate has two firing port windows of size 175+/- 5mm X 125+/- 5mm with adequate overlapping of B.P. Sliding shutter from inner side at a height of 1350 and 750mm respectively from the bottom of Morcha plate. (Subject to size of BP Morcha height & end user requirement).
  • 4 Wheels Each Morcha plate to have castor wheels for the mobility of Morcha. There is a provision for detachment of wheels as per user requirement.
  • 5 Roof Roof may be provided as per user requirement.
  • 6 Hinge Joints Made of corrosion-resistant material.
  • 7 Locking Arrangement Each plate of the BP Morcha has a convenient locking arrangement for assembling & dismantling.
  • 8 Port Shutter Replacement Port shutter can be replaced in case it gets damaged due to bullet hit.
  • 9 BP Morcha Colour Colour of the Bullet Proof Morcha as per end user requirement.
  • 10 Coverage Shall provide coverage from three directions i.e. front, left and right.
  • 11 Ballistic Test Report of Armour Steel Armour steel to be tested and certified from TBRL, Chandigarh. Ballistic test report in this regard to be submitted.
  • 12 BP Morcha Identification Traceability and Requirement of BP Steel Each BP Morcha shall have an individual serial number (reflected through marking/stencil on Morcha) and will be offered for inspection with vendor's inspection certificate for verification against user QR's. Each BP Morcha must be traceable to individual BP Steel sheets it is made from with Make/Grade/Heat Lot/Plate ID of BP steel to be reflected in each Morcha certificate, and supported by Mill Test Certificate (MTC) of all BP Plate/Plates used for Morcha fabrication. Any Morcha, not conforming to the QR's and for which material traceability cannot be verified, will be rejected.
  • 13 Warranty Warranty for one year to be provided for workmanship.

*All specifications can be customized as per end user requirement

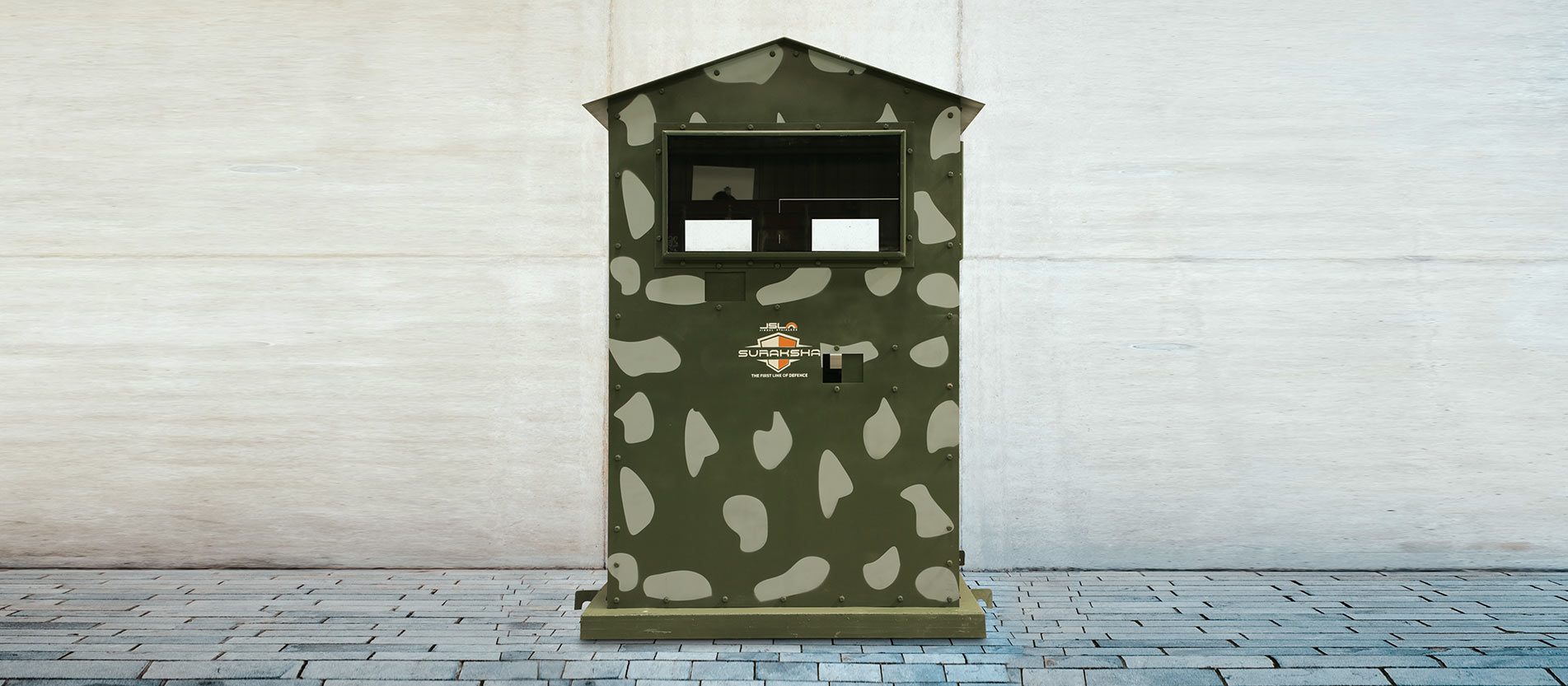

Bullet Proof Sentry Post

Bullet Proof Sentry Post

Bullet Proof Sentry Post

Technical Specifications +

  • Sr.No. Parameter Specification*
  • 1 Protection Protection can be provided against different threat levels like NIJ Level III, STANAG Level 2, 7.62 X 54R.
  • 2 Handling Two foldable type carrying handles on each Morcha Plate for ease of handling.
  • 3 Firing Port Each BP Sentry Post side has two firing port windows of size 175+/- 5mm X 125+/- 5mm with adequate overlapping of B.P. Sliding shutter from inner side. Firing can be done in both standing and knee bent position.
  • 4 Port Shutter Replacement Port shutter can be replaced in case it gets damaged due to bullet hit.
  • 5 Lifting Hooks The BP Sentry Post must have lifting hooks for easy maneuverability.
  • 6 BR Glass Observation Windows BR glass on three sides (Front, Left, Right) - 1000 x 500mm BR glass on door/rear side (02 No.) - 400 x 300mm
  • 7 Provisions/ Attachments Provision for fan/light, hooks for hanging weapon etc.
  • 8 BP Sentry Post Colour Colour of the Bullet Proof Sentry Post as per end user requirement.
  • 9 Coverage Shall be provided coverage from all sides and roof.
  • 10 Ballistic Test Report of Armour Steel Armour Steel to be tested and certified from TBRL, Chandigarh. Ballistic test report in this regard to be submitted.
  • 11 BP Sentry Post identification Traceability and Requirement of BP Steel Each BP Sentry Post shall have an individual serial number (reflected through marking/stencil on Sentry Post) and will be offered for inspection with vendor’s inspection certificate for verification against user QR’s. Each BP Sentry Post must be traceable to individual BP Steel sheets it is made from with Make/Grade/Heat Lot/Plate ID of BP Steel to be reflected in each BP Sentry Post certificate, and supported by Mill Test Certificate (MTC) of all BP Plate/Plates used for fabrication. Any BP Sentry Post, not conforming to the QR’s and for which material traceability cannot be verified, will be rejected.
  • 12 Warranty Warranty for one year to be provided for workmanship.

*All specifications can be customized as per end user requirement

Bullet Proof Mobile Shield

Bullet Proof Mobile Shield

The JSL Advantage

It is portable, with a varying inclination angle. It can be equipped with a carrying handle and enables easy assembly/dismantling.

Product Variants +

  • Model No. JSHL-BS-01 JSHL-BS-02 JSHL-BS-03 JSHL-BS-04 JSHL-BS-05 JSHL-BS-06
  • Size Small Large
  • Protection Level NIJ Level III (7.62 X 51mm SLR, 7.62 X 39mm AK) STANAG Level 2 (7.62 X 39mm API) 7.62 X 54R NIJ Level III (7.62 X 51mm SLR, 7.62 X 39mm AK) STANAG Level 2 (7.62 X 39mm API) 7.62 X 54R
  • Armour Steel Thickness 6.0mm 10.0mm 12.5mm 6.0mm 10.0mm 12.5mm
  • Dimensions
    (As per MHA Specs)
    1200mm X 700mm 1200mm X 700mm 1200mm X 700mm 1900mm X 750mm 1900mm X 750mm 1900mm X 750mm
  • Weight in KGs (Max) 60 90 115 90 125 170

NOTE: The protection level, dimensions and weight requirement will be according to the end user.

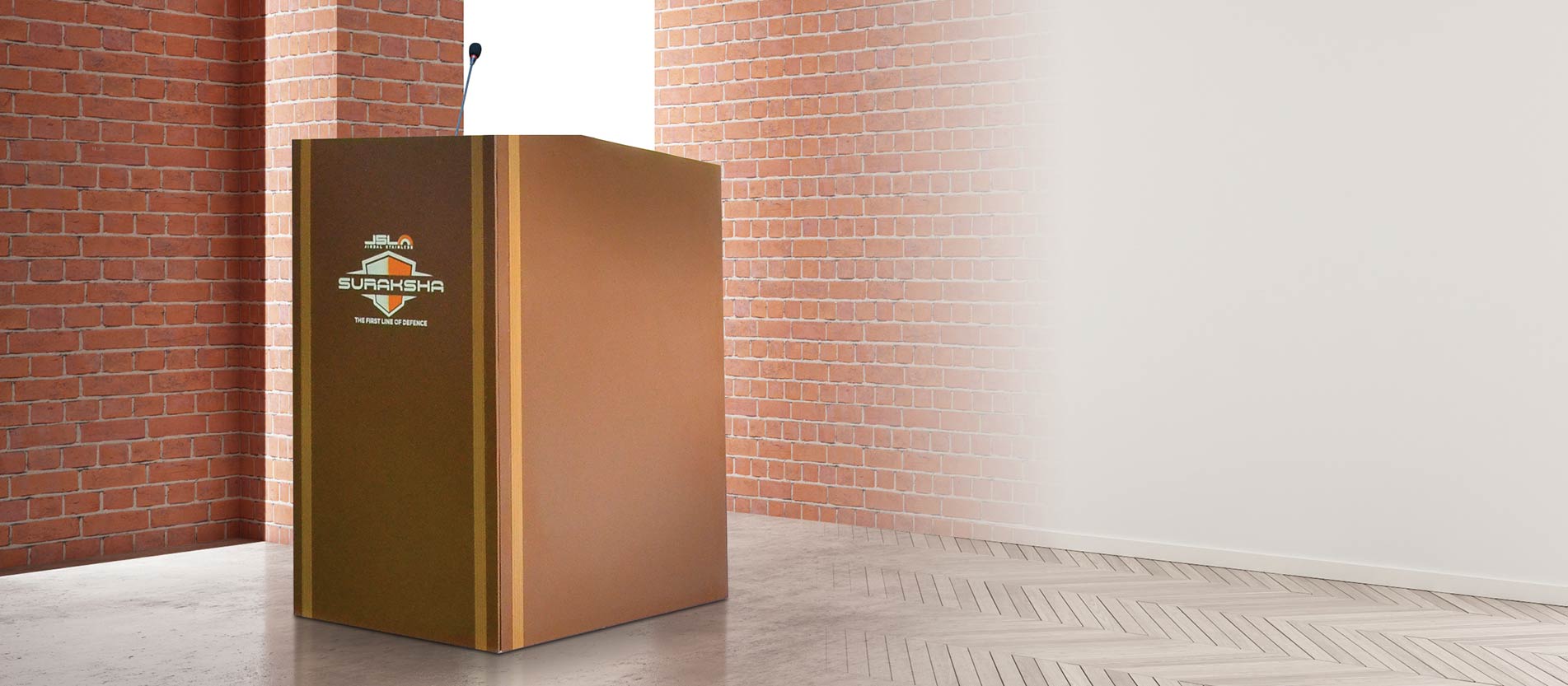

Bullet Proof Podium

Bullet Proof Podium

The JSL Advantage

The front of the plates is covered with wood laminate for a standard podium wooden look, with provision for microphone and light. It can be customized with wheels and bullet-proof glass.

Product Forms +

  • Model No. JSHL-BS-01 JSHL-BS-02 JSHL-BS-03
  • Size Customizable
  • Protection Level NIJ Level III (7.62 X 51mm SLR, 7.62 X 39mm AK) STANAG Level 2 7.62 X 54R
  • Armour Steel Thickness 6.0mm 10.0mm 12.5mm
  • Dimensions
    (As per MHA Specs)
    Can be customized Can be customized Can be customized
  • Weight in KGs (Max) 260 400 500

NOTE: The protection level, dimensions and weight requirement will be according to the end user.

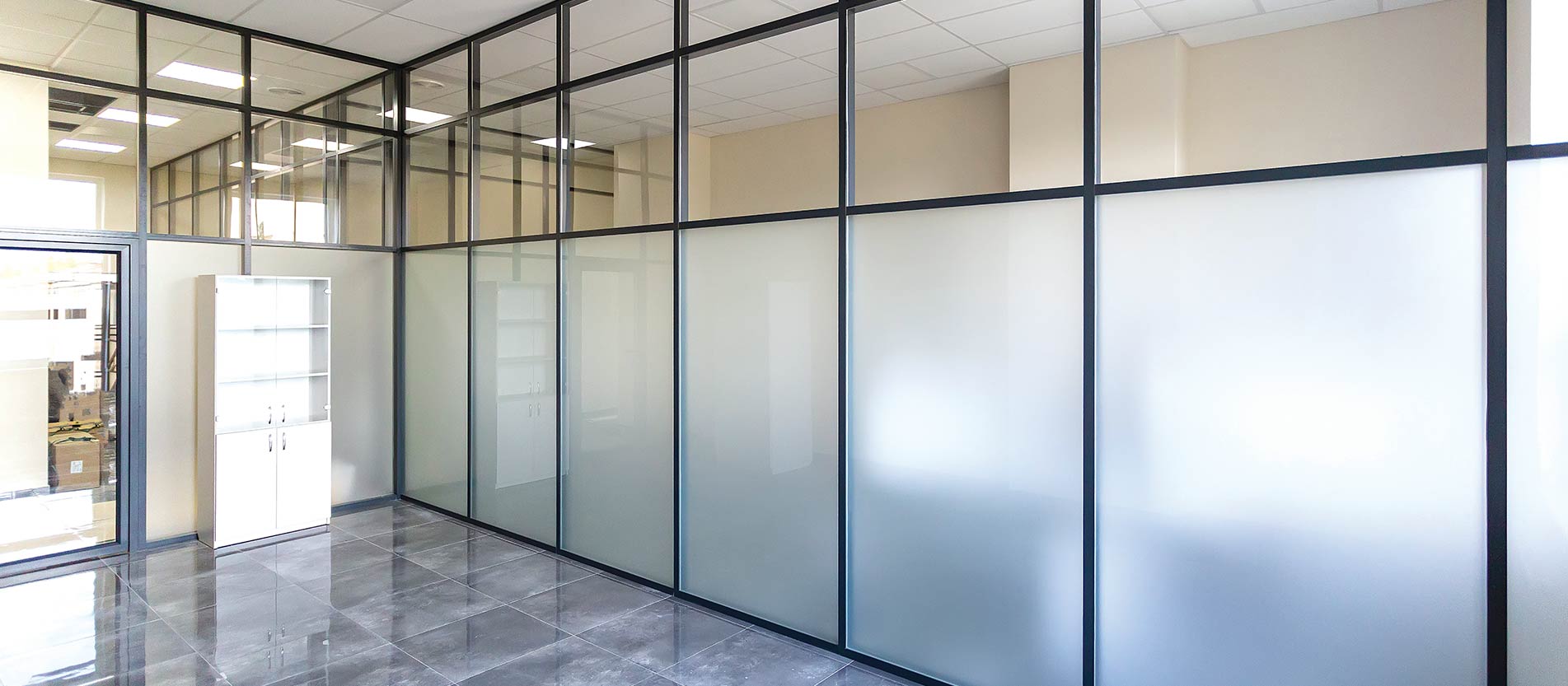

Bullet Proof Partition Shield

Bullet Proof Partition Shield

The JSL Advantage

It has a combination of aesthetic and architectural effects, and can be used for temporary/permanent applications. It is lightweight, enabling quick assembling/dismantling and easy storage. It is available in a variety of colors.

Product Variants +

  • Model No. JSHL-BS-01 JSHL-BS-02 JSHL-BS-03
  • Size Standard
  • Protection Level NIJ Level III (7.62 X 51mm SLR, 7.62 X 39mm AK) STANAG Level 2 7.62 X 54R
  • Armour Steel Thickness 6.0mm 10.0mm 12.0mm
  • Dimensions
    (As per MHA Specs)
    Can be customized Can be customized Can be customized
  • Weight in KGs (Max) Will depend Will depend Will depend

NOTE: The protection level, dimensions and weight requirement will be according to the end user.
